Why it matters

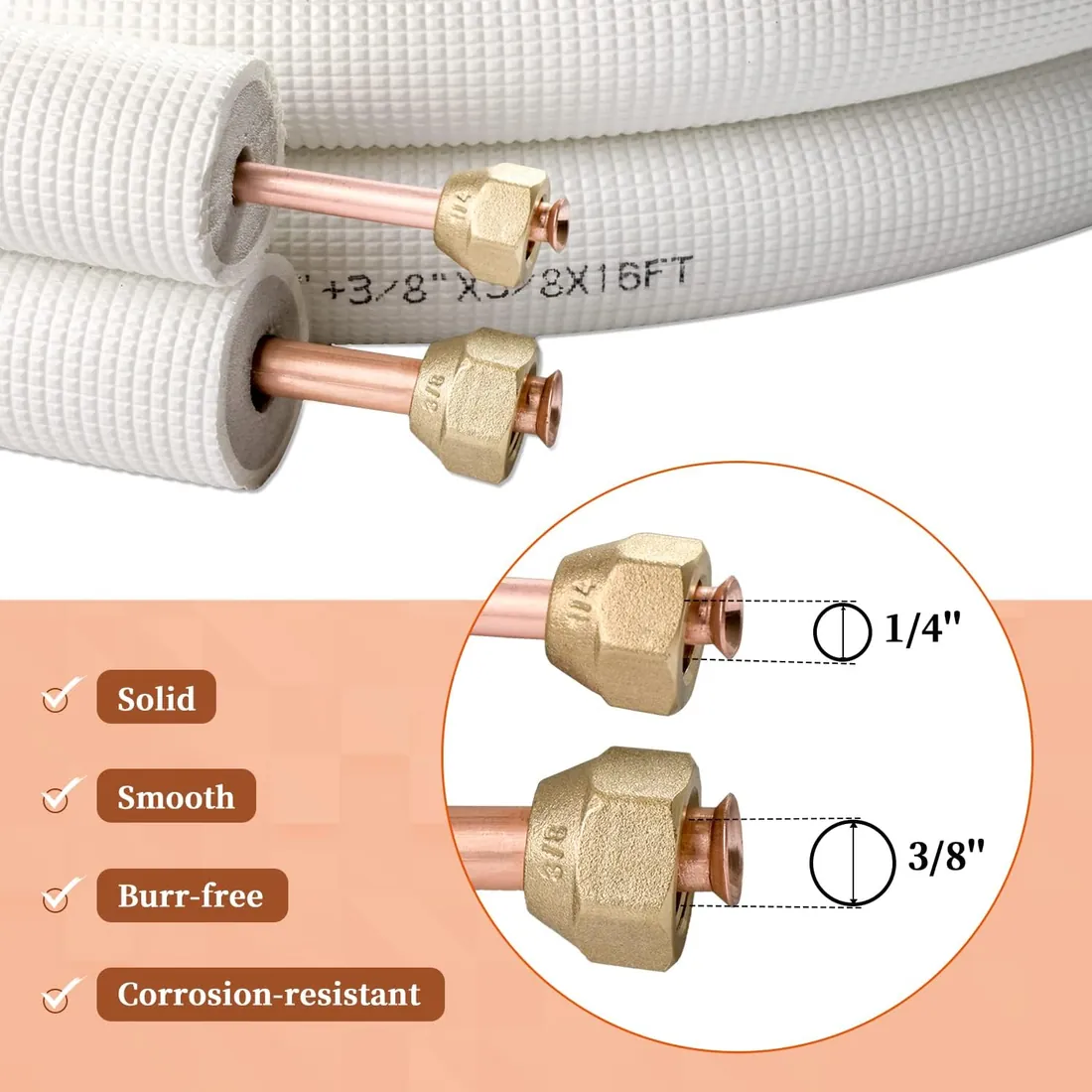

The Wostore 16 ft Line Set, 1/4 x 3/8 in is a pre-flared, insulated copper line set, 16 ft long, with a 1/4 in liquid line and a 3/8 in suction line. That pairing suits most 9,000 and 12,000 BTU systems (and some 18,000 BTU ones); always match both sizes to your condenser's service valves.
Most systems ship charged for a set line length, often 16 or 25 ft. Within that length no refrigerant needs adding; longer runs need extra charge added by a technician, and every open-flare connection needs a vacuum pulled before the valves are opened.

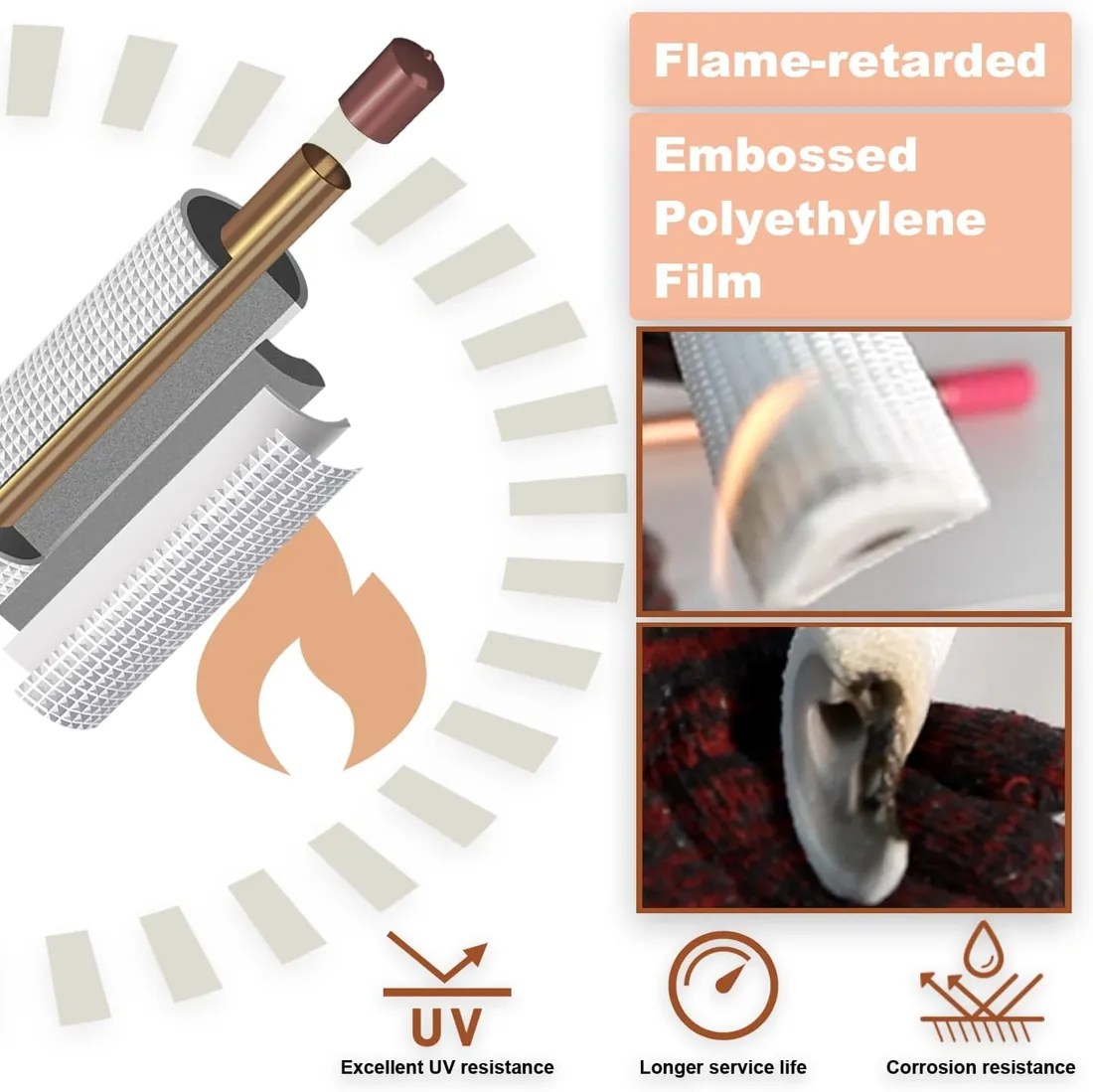

Both lines are insulated; outdoors, protect the insulation from sunlight with a line-set cover.
The listing gives dimensions of 192 inL x 0.37 inW, a shipping or unit weight of 3.45 kg and copper,foam,cotton construction.
Who it's for, and who should skip it
Good fit if
- Systems with 1/4 x 3/8 in valves
- Replacing a damaged line set
Look elsewhere if
- DIY quick-connect systems, which use their own sealed lines
Pros and cons
Pros
- 16 ft length
- 1/4 x 3/8 in pipe sizes
- Copper,Foam,Cotton
Cons
- Needs flaring tools and a vacuum pump to install
- Extra refrigerant needed beyond the pre-charge length
Limitations to weigh
- Specifications are the maker's or seller's own; check fit against your system's manual.
Specifications
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Material | Copper,Foam,Cotton | Retailer |
|---|---|---|
| Dimensions (seller) | 192"L x 0.37"W | Retailer |
| Product weight | 3.45 kg | Retailer |
| Pipe sizes | 0.38 inches | Retailer |
| Length | 192 inches | Retailer |
| Line set included | 16Ft. insulated line set | Retailer |
Alternatives worth comparing
More line sets and install kits we cover
- ICOOL 16 ft Line Set, 1/4 x 1/2 in
- TAUROX 25 ft Line Set, 1/4 x 3/8 in
- TADERUILY 25 ft Line Set, 1/4 x 3/8 in
- ICOOL 25 ft Line Set, 1/4 x 3/8 in
All line sets and install kits, compared in one table · Every Wostore product we cover
Final verdict
A practical line set, up to 25 ft for mini-split installs.
