Why it matters
The DELLA 3-Zone (6K+9K+12K) 20,000 BTU 230V Mini-Split is rated at 20,000 BTU of cooling. It splits that capacity between 3 indoor heads, so size each head to its own room and check the total against the condenser. It needs a 230V (208/240V) circuit, which usually means an electrician if one isn't already at the spot.
Its 27 SEER2 ranks 1 of 3 among the multi-zone systems within about 12% of its capacity that we cover, the top of that group. The maker says heat-pump heating keeps working down to -22°F outside, hyper-heat territory. Indoor noise is listed at 26 dB at its quietest setting.
Like most split systems it ships pre-charged for a set line length; connecting it means flaring, pulling a vacuum and opening the valves, a licensed technician's job in most places. It uses R-454B refrigerant, one of the lower-impact A2L refrigerants new systems moved to in 2025. Warranty, per the listing: Lifetime Coverage.

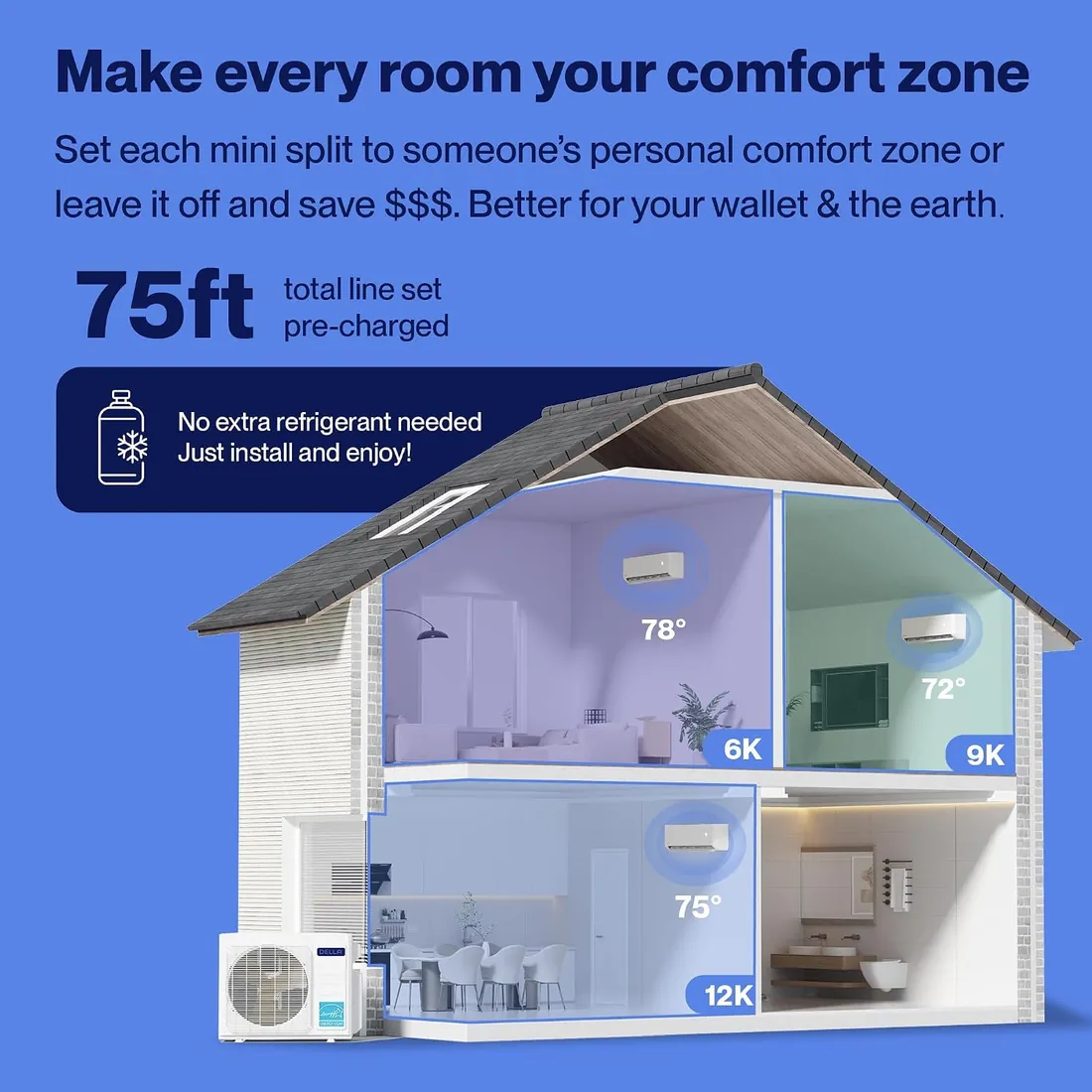

The kit pairs the condenser with a 6,000 BTU head (about 150-250 sq ft), a 9,000 BTU head (about 350-400 sq ft) and a 12,000 BTU head (about 450-550 sq ft), so each room should fall in its head's band. The listing gives dimensions of 7.68 inD x 32.28 inW x 12.05 inH, a shipping or unit weight of 20.7 pounds, a 1,395 W power draw and user manual in the box.
Who it's for, and who should skip it
Good fit if
- Whole floors with several rooms
- Lower running costs than most same-size systems
Look elsewhere if
- Owners who want to avoid a licensed install
Pros and cons
Pros
- 27 SEER2
- Heats down to -22°F
- Quiet indoor head (26 dB)
Cons
- Needs a 230V circuit
- Professional install recommended
Limitations to weigh
- Capacity and efficiency are the maker's ratings; real output depends on the install, the line length and the weather.
- Heat pumps lose heating capacity as it gets colder; size for your climate with the BTU calculator.
- The federal 25C tax credit ended for systems installed after 2025; check your utility for current rebates.
Specifications
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Capacity | 1.66 tons | Retailer |
|---|---|---|
| Cooling capacity (maker) | 20000 BTU | Retailer |
| Features (seller) | Dehumidifier, Heating & Cooling Function, Remote Controlled, Sleep Mode, WiFi Enabled | Retailer |
| Dimensions (seller) | 7.68"D x 32.28"W x 12.05"H | Retailer |
| Voltage | 230 | Retailer |
| Noise (seller) | 26 db | Retailer |
| Refrigerant | R-454B | Retailer |
| Wattage | 1395 | Retailer |
| Control | Remote | Retailer |
| Model number | 1D3-TPHX+T6912-X | Retailer |
| Warranty | Lifetime Coverage | Retailer |
| Product weight | 20.7 lb | Retailer |
| SEER2 (maker) | 27 | Retailer |
| Heats down to (maker) | -22°F | Retailer |
| Zones | 3 | Retailer |
Alternatives worth comparing
More multi-zone systems we cover
- Gree 3-Zone 24,000 BTU 230V Mini-Split
- ROVSUN 4-Zone (12K+12K+12K+12K) 38,000 BTU 230V Mini-Split
- Senville 4-Zone 36,000 BTU 230V Mini-Split
- Albott 2-Zone (12K+12K) 24,000 BTU 230V Mini-Split
All multi-zone systems, compared in one table · Every DELLA product we cover
Final verdict
A 3-zone system worth comparing. Check that 20,000 BTU fits your room with the BTU calculator before you buy.
