Why it matters

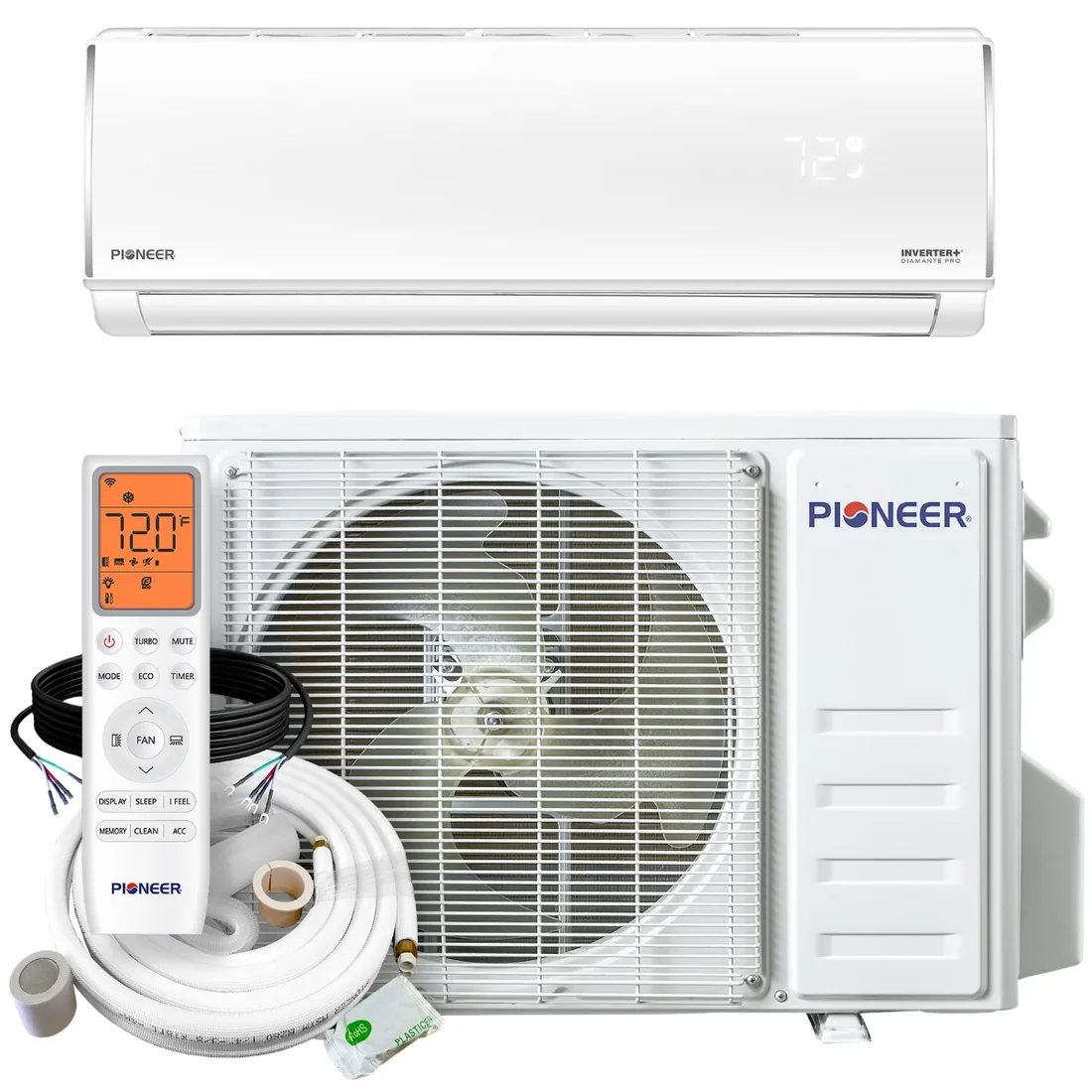

The Pioneer Diamante Pro 9,000 BTU 230V is rated at 9,000 BTU of cooling and 10,000 BTU of heating. On the ENERGY STAR room sizing chart that suits about 350 to 400 sq ft of average room; the maker says up to 400 sq ft.
Its 20 SEER2 ranks 13 of 20 among the mini-splits within about 12% of its capacity that we cover; the most efficient is the Senville Elite 9,000 BTU 230V at 33.3. The maker says heat-pump heating keeps working down to -4°F outside; below that you need another heat source.
Expect a professional install: the copper lines are connected, pressure-checked and vacuumed before the refrigerant is released. It uses R-454B refrigerant, one of the lower-impact A2L refrigerants new systems moved to in 2025. Warranty, per the listing: 5-Year Limited Warranty.
Who it's for, and who should skip it
Good fit if
- Rooms of about 350-400 sq ft
- Large rooms and garages
Look elsewhere if
- Spaces much larger than 400 sq ft
- Owners who want to avoid a licensed install
Pros and cons
Pros
- 20 SEER2
- 10,000 BTU heating stated
- Heats down to -4°F
Cons
- Professional install recommended
Limitations to weigh
- Capacity and efficiency are the maker's ratings; real output depends on the install, the line length and the weather.
- Heat pumps lose heating capacity as it gets colder; size for your climate with the BTU calculator.
- The federal 25C tax credit ended for systems installed after 2025; check your utility for current rebates.
Specifications
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Price | $828 | Retailer |
|---|---|---|
| Model number | WYT009GLSI20RL | Retailer |
| Voltage | 230V | Retailer |
| Cooling capacity (maker) | 9000 BTU | Retailer |
| Heating capacity (maker) | 10000 BTU | Retailer |
| SEER2 (maker) | 20.0 | Retailer |
| EER2 (maker) | 12 | Retailer |
| Heats down to (maker) | -4°F | Retailer |
| Room size (maker) | 400 sq ft | Retailer |
| Refrigerant | R-454B | Retailer |
| Zones | 1 | Retailer |
| Compressor | Inverter | Retailer |
| Certifications | AHRI, cETLus | Retailer |
| Max line length (maker) | 25 ft | Retailer |
| Airflow | 342.0 cfm | Retailer |
| Warranty | 5-Year Limited Warranty | Retailer |
Alternatives worth comparing
More ductless mini-splits we cover
Final verdict
A straightforward choice for a 350-400 sq ft room. Check that 9,000 BTU fits your room with the BTU calculator before you buy.
